Built With Premium Components
The Legato features an internal cable routed system to create sleek lines (and aero gains!).
Balanced Geometry
With clearance for up to 45mm tyres, luggage mounts and mudguard eyelets, our versatile compact frame and geometry make it your perfect year around agile companion.
Advanced Aerodynamics
Its compatible with 650b & 700c wheels and we offer options for gravel or road handlebars, GRX or road groupsets, gravel or road tyres… so you can build the Legato into your preferred riding style.
Built With Premium Components
Come gravel trails, bikepacking or tarmac roads, the Legato really can do it all.
Geometry
XS (49) | S (52) | M (54) | L (56) | XL (58) | |
---|---|---|---|---|---|
ST | 470 | 500 | 520 | 540 | 560 |
TT | 515 | 535 | 553 | 567 | 580 |
HT | 105 | 125 | 140 | 155 | 170 |
HA | 70.5 | 71 | 71.5 | 72 | 72 |
CA | 74.5 | 74 | 73.5 | 73.5 | 73.5 |
BB | 76 | 76 | 76 | 76 | 76 |
RC | 435 | 435 | 435 | 435 | 435 |
FC | 587 | 598 | 607 | 617 | 630 |
OFFSET | 50 | 50 | 50 | 50 | 50 |
WB | 1010 | 1010 | 1031 | 1040 | 1054 |
STACK | 536 | 536 | 572 | 588 | 603 |
REACH | 366 | 366 | 384 | 393 | 402 |
Frequently Asked Questions
- How much does the Moda Legato frame weigh?
- What warranty is offered on the frame?
- What type of bottom bracket does it take?
- Are the cables internally routed?
- What is the maximum tyre size?
- How many bottle cage mounts are there?
- Is the bike fitted with bottles and cages??
- Are the axles thru-axle or quick release?
- Is it mudguard compatible
- What is the maximum rider weight?
- Can I fit tri bar extensions to the Moda carbon aero Handlebars?
- Does the Moda Legato have any other storage or transport fitting?
- Is the bike supplied with pedals?
- How much weight can you load onto the Molto?
The Toray T1000/T800 carbon frame weighs 1320±30g in size
Medium (54) and the uncut forks weigh 480±15g.
Because all our Moda bikes come in a range of sizes and are
custom built with a wide variation of componentry, its difficult to give you a weight of a complete bike.
The Moda Legato frame is guaranteed against manufacturing defects for a period of 3 years.
Paintwork for 1 year.
The standard manufacturer's warranty covers all other
components.
The Moda Legato has a press fit 41 bottom bracket, allowing
for ease of maintenance and enhanced reliability.
Yes. The Moda Carbon integrated handlebars, in combination with the frameset, enable all the cables to be fully hidden. This gives the Moda Legatos minimal lines for a sleek outlook and maximum drag savings.
The Moda Legato frame will accommodate size 42 mm tyres quitecomfortably (manufacturer dependant up to size 45mm).

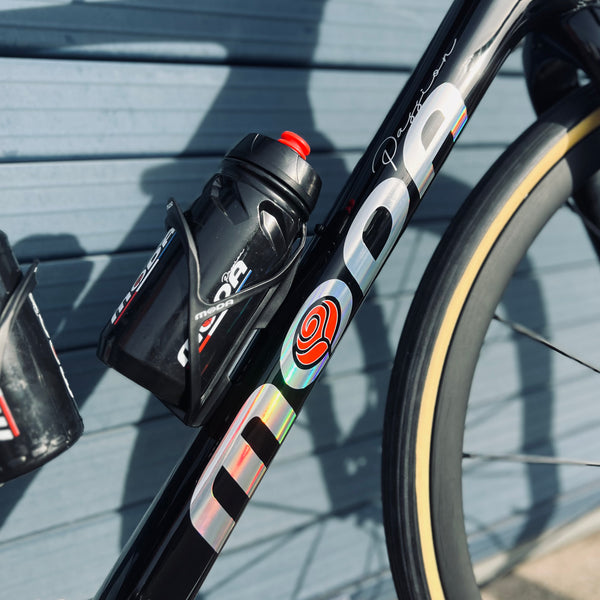

Three. One is situated on top of the down tube and one underneath as well as another on the seat tube.
Yes, two black composite Moda bottle cages are supplied and
fitted together with a Moda tool and Moda drinking bottle when purchasing a Moda Legato.
The Moda Legato frame/bike is supplied with two M12 x 1.5 front and rear thru-axles.
Yes there are integrated mudguard mounts on both the forks and rear triangle so the Moda Molto can be fitted with mudguards/fenders.
We recommend a maximum rider plus bike weight of up 120kgs
subject to proportion of seat post elevation. (details available on request)
In this instance we’d recommend using one of our Deda alloy
handlebar options if you intend fitting a tri bars. (details available on request)
Yes there are fitting for a top tube bag as well as three fittings either side of the carbon forks for transport.
Due to the many different systems people use, we don't supply pedals with bikes. However, you can choose from a selection of the best-selling
pedals when you configure your bike and again we can supply at a competitive price. (details available on request)
The Molto can carry Max 5kg per bolt. For heavier bike packing we suggst the Moda Strega Titanium.
