Built With Premium Components

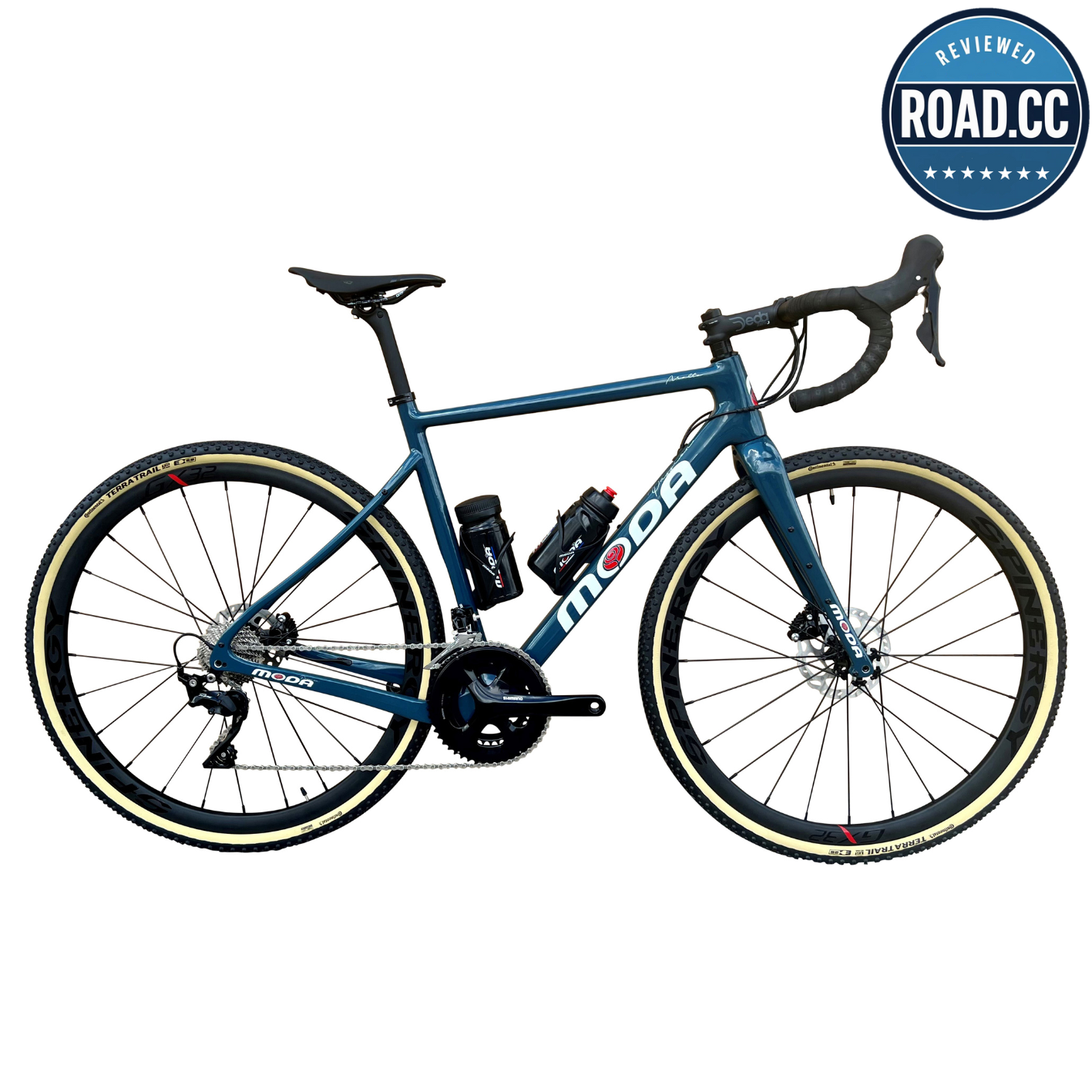

The Molto gravel bike is both agile, diverse and VERY capable of the most demanding conditions.
Balanced Geometry
It’s at home on both road and tricky gravel trails, the full carbon frame and forks ensure a responsive and lightweight feel to the ride.
Advanced Aerodynamics
With an extended wheelbase, dropped chainstay and a NEW clearance for up to 45-50mm tyres. With 12mm thru axles and flat mount disc brakes it guarantees stability and confidence under braking.
Built With Premium Components
Mudguards and pannier mounts allow you to ride any distance anywhere at any time, this truly is an all-round bike designed with adventure in mind.
Geometry
| XS (49) | S (52) | M (54) | L (56) | XL (58) | |
|---|---|---|---|---|---|
| ST | 490 | 520 | 540 | 560 | 580 |
| TT | 520 | 535 | 550 | 565 | 580 |
| HT | 120 | 135 | 150 | 165 | 185 |
| HA | 70.5 | 71 | 71.5 | 72 | 72 |
| CA | 74.5 | 74 | 73 | 73 | 73 |
| BB | 72 | 72 | 72 | 72 | 72 |
| RC | 435 | 435 | 435 | 435 | 435 |
| FC | 594 | 599 | 600 | 610 | 625 |
| OFFSET | 50 | 50 | 50 | 50 | 50 |
| WB | 1018 | 1024 | 1025 | 1035 | 1050 |
| STACK | 545 | 562 | 577 | 594 | 613 |
| REACH | 369 | 374 | 374 | 383 | 393 |
Frequently Asked Questions
- How much does the Moda Molto frame weigh?
- What warranty is offered on the frame?
- What type of bottom bracket does it take?
- Are the cables internally routed?
- What is the maximum tyre size?
- How many bottle cage mounts arethere?
- Is the bike fitted with bottles and cages?
- Are the axles thru-axle or quick release?
- Is it mudguard compatible?
- What is the maximum rider weight?
- Does the Moda Molto have any other storage or transport fitting?
- Is the bike supplied with pedals?
- How much weight can you load onto the Molto?
The Toray T1000/T800 carbon frame weighs 1200±30g in size
Medium (54) and the uncut forks weigh 520±15g
Because all our Moda bikes come in a range of sizes and are
custom built with a wide variation of componentry, its difficult to give you a weight of a complete bike.
The Moda Molto frame is guaranteed against manufacturing defects for a period of 3 years.
Paintwork for 1 year.
The standard manufacturer's warranty covers all other
components.
The Moda Molto has a press fit 41 bottom bracket, allowing for ease of maintenance and enhanced reliability.
Partially. The frameset enables all the cables to be run internally through the frame behind the head tube. This allows the Moda Molto to assembled with a wide
range of steering components whilst also benefiting for fast easy adjustment of rider position management.
The Moda Molto frame will accommodate size 48 mm tyres quite comfortably (manufacturer dependant up to size 50mm).
Three. One is situated on top of the down tube and one underneath as well as another on the seat tube.
Yes, two black composite Moda bottle cages are supplied and fitted together with a Moda tool and Moda drinking bottle when purchasing a Moda Molto.
The Moda Molto frame/bike is supplied with two M12 x 1.5 front and rear thru-axles.
Yes there are integrated mudguard mounts on both the forks and rear triangle so the Moda Molto can be fitted with mudguards/fenders.
We recommend a maximum rider plus bike weight of up 120kgs
subject to proportion of seat post elevation. (details available on request)
Yes there are fitting for a top tube bag as well as three fittings either side of the carbon forks for transport.
Due to the many different systems people use, we don't supply pedals with bikes. However, you can choose from a selection of the best-selling pedals when you configure your bike and again we can supply at a competitive price. (details available on request)
The Molto can carry Max 5kg per bolt. For heavier bike packing we suggst the Moda Strega Titanium.
