BALANCED GEOMETRY
The Moda Grappa can be ridden in all 4 seasons regardless of the weather and looks at incredible with either of the 2 finishes (acid etched or sand blasted).
ADVANCED AERODYNAMICS
The Moda Grappa features up to 33mm tire clearance, ensuring a smooth ride over today’s rough road surfaces.
BUILD WITH PREMIUM COMPONENTS
DCR cable routing gives reassuring, clean and modern outlook to this hand crafted piece of jaw dropping art.
SPECIAL FEATURES

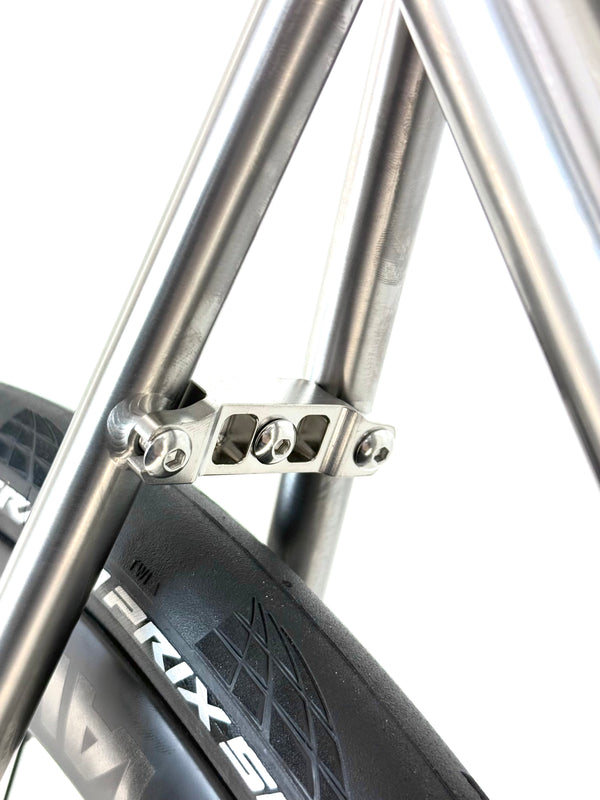

A concealed detachable mudguard bridge lets you add guards during winter, keeping the worst of the weather at bay, and when it's removed, the rear triangle reverts to a sleek, minimalist design of a top tier summer bike.
Frequently Asked Questions
- How much does the Moda Grappa frame weigh?
- What warranty is offered on the frame?
- Can the Moda Carbon handlebars accommodate computer mounts?
- What type of bottom bracket does it take?
- Are the cables internally routed?
- What is the maximum tyre size?
- How many bottle cage mounts arethere?
- Is the bike fitted with bottles and cages??
- Are the axles thru-axle or quick release?
- Is it mudguard compatible?
- What is the maximum rider weight?
- Can I fit tri bar extensions to the Moda carbon aero Handlebars?
- Can I fit a computer or lights to the Moda carbon aero handlebars?
- Is the bike supplied with pedals?
The 3AL 2.5V , grade 9 titanium frame weighs 1150±30g in size Medium (54) and the uncut forks weigh 425±15g.
Because all our Moda bikes come in a range of sizes and are custom built with a wide variation of componentry, its difficult to give you a weight of a complete bike.
The Moda Grappa frame is guaranteed against anufacturing defects for a period of 5 years. The standard manufacturer's warranty covers all other components.
Yes but wed suggest a computer mount with a slender clamp. Moon, Whahoo or K edge are all good options.
The Moda Grappa has a Press fit 41 bottom bracket allowing for ease of maintenance and enhanced reliability.
With the Moda Carbon integrated handlebars, incombination with the frameset, enable all the cables to be fully hidden. This gives the Moda Grappa minimal lines for a sleek outlook and maximum drag savings.
The Moda Grappa frame will accommodate size 32 mm tyres quite comfortably (manufacturer dependant up to size 35mm)
Two. One is situated on the down tube and one on the seat tube.
Yes, two black composite Moda bottle cages are supplied and fitted together with a Moda tool and Moda drinking bottle when purchasing a Moda Gappa.
The Moda Grappa frame/bike is supplied with two M12 x 1.5 front and rear thru-axles.
Yes, the Moda Gappa has very discreet fittings to accept mudguards should you wish to fit them.
We recommend a maximum rider plus bike weight of up 120kgs subject to proportion of seat post elevation (details available on request).
In this instance we’d recommend using one of our Deda alloy handlebar options if you intend fitting a tri bars. (details available on request).
Yes but as with an manufacturers aerodynamic profile top portion of the handlebar, this makes finding compatible lights and computers a little more difficult. To overcome this, we'd suggest combining your computer mount with a dual compatible mount which we can supply. (details available on request).
Due to the many different systems people use, we don't supply pedals with bikes. However, you can choose from a selection of the best-selling pedals when you configure your bike and again we can supply at a competitive price (details available on request).
Geometry
| XS (49) | S (52) | M (54) | L (56) | XL (58) | |
|---|---|---|---|---|---|
| ST | 470 | 500 | 520 | 540 | 560 |
| TT | 509 | 432 | 542 | 564 | 577 |
| HT | 110 | 120 | 140 | 160 | 180 |
| HA | 71.5 | 72 | 72.5 | 73 | 73 |
| CA | 75.5 | 74 | 74 | 73.5 | 73.5 |
| BB | 72 | 72 | 72 | 72 | 72 |
| RC | 410 | 410 | 410 | 410 | 410 |
| FC | 576 | 581 | 587 | 599 | 612 |
| OFFSET | 45 | 45 | 45 | 45 | 45 |
| WB | 976 | 980 | 986 | 988 | 1011 |
| STACK | 519 | 530 | 551 | 571 | 591 |
| REACH | 375 | 380 | 384 | 395 | 402 |
